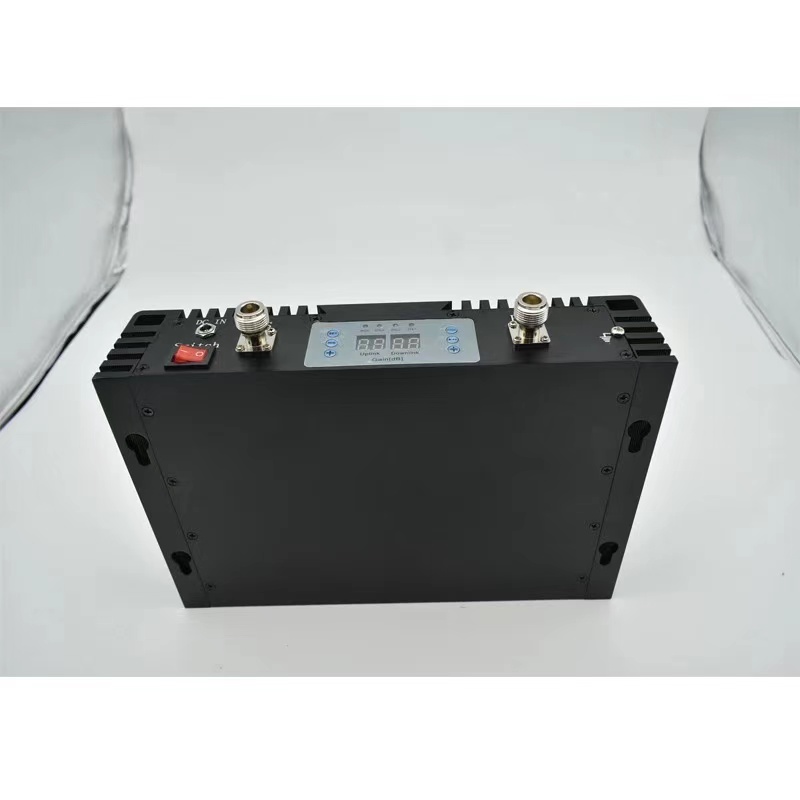

Name: High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
Brand: JIAYI
Price: 188.00 USD

Model Number : JY811

Place of Origin : Guangdong, China

Brand Name : JIAYI

Packaging Details : Normal packing

Price : $188.00/sets 1-49 sets

Type : 3g signal booster

Network : 4g, GSM, 3G

Product name : Mobile Repeater

Frequency : 900/1800/2100MHz

Gain : 31dB

Function : Signal Extender

Application : Home Office Farm Hotel Ship

Output Power : 30dBm

Product Size : 24*34*28

Weight : 5KG

Color : Black

Quality Warranty : 2 Yeara

Contact Now

High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster with 31dB Gain and 2

Products Description

Specification

Frequency Range				Uplink		Downlink
LTE 800MHz				832-862MHz		791-821MHz
GSM900MHz				890-915MHz		935-960MHz
1800MHz				1710-1785MHz		1805-1880MHz
2100MHz				1920-1980MHz		2110-2170MHz
2600MHz				2500-2570MHz		2630-2690MHz
Max. Gain				75dB ±1.5dB		80dB±1.5dB
Max. Output Power				22dBm±1.5dB		27dBm±1.5dB
Band width				Wide Band
Manual Gain Control				31dB
ALC				>25dB
Ripple in Band				≤ 8dB
Noise Figure				≤ 6dB
VSWR				≤ 2.0
Intermodulation				≤ -40dBc
Spurious Emission	9KHz~1GHz		≤ -36dBm
	1~12.75GHz		≤ -30dBm
Time Delay				≤ 1.5 μs
Frequency stability				≤ 0.01ppm
MTBF				> 50000 hours
Impedance				50 ohm
Power Supply				AC 90-264V,DC 10V/10A
Power LED				Power indicator
Alarm LED		Red	Self oscillation or Strong input signal
		Green	Normal
Mechanical Specification
RF Connector					N-Female
Switch					Power Switch,Manual Gain Control Switch
Cooling					Heatsink Convection cooling
Humidity					< 90%
Operating Temperature					-10°C ~ +55°C
Environment Conditions					IP40
Installation Type					Wall Installation
Size					43926858mm
Weight					< 8.5Kg

Installation Instructions
